MOA　Series　for　Exporting

2019-06-15 15:24　Clicks: 7214

Product introduction

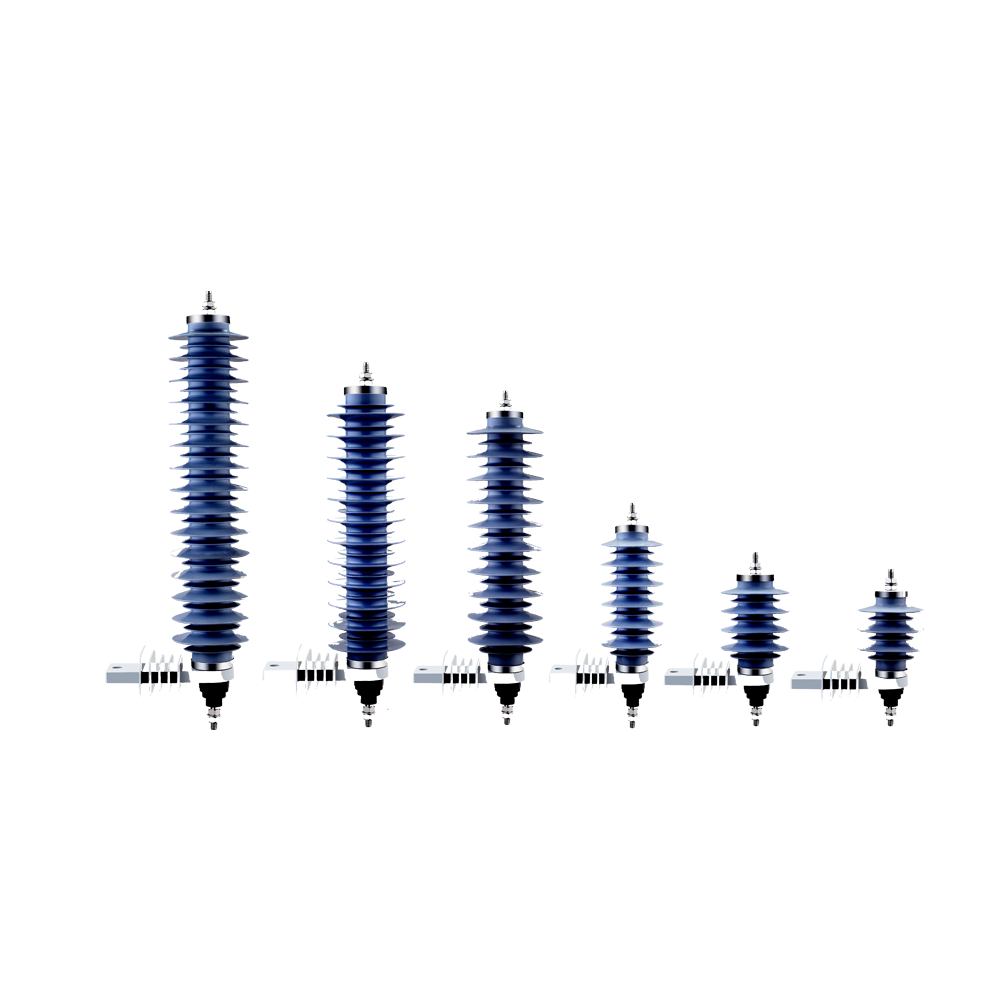

- Polymer-Housed Arresters 9-24kV/5kA, 15-60kV/10kA (KEMA TESTED)

- Polymer-Housed Arresters up to 220kV

- Porcelain-Housed Arresters up to 500kV

- Tested according to IEC 60099-4

- Certified to ISO 9001 and ISO 14001

Product Details

Table 1 The technical parameters of 5kA seires polymer housed MOA for export

	Type designation	Unit	HY5W-3/8.5	HY5W-6/17	HY5W-9/25.5	HY5W-12/34	HY5W-15/42.5	HY5W-18/51
1	Rated Voltage	kV	3	6	9	12	15	18
2	Continuous operating voltage	kV	2.4	4.8	7.2	9.6	12	14.4
3	Nominal discharge current	kA	5	5	5	5	5	5
4	Min. reference voltage at D.C. 1mA	kV	4.3	8.6	13	17.2	21.5	25.8
5	Lightning impulse residual voltage 8/20 μs	kV	8.5	17	25.5	34	42.5	51
6	Steep current impulse residual voltage 1/10 μs	kV	9.8	19.6	29.3	39.1	48.9	58.7
7	Switching impulse residual voltage 30/60 μs	kV	7.2	14.4	21.7	28.9	36.0	43.3
8	2ms rectangular current withstand	A	75	75	75	75	75	75
9	4/10 μs high current impulse withstand	kA	65	65	65	65	65	65
10	Arrester number of sheds	PCS	1	2	3	4	5	6
11	Creepage distance	mm	118	213	308	403	498	593
12	Arrester height	mm	138±5	167±5	196±5	225±5	254±5	283±5
13	Body weight	Kg	0.50	0.68	0.90	1.12	1.33	1.53

Table 2 The technical parameters of 5kA seires polymer housed MOA for export

	Type designation	Unit	HY5W-21/59.5	HY5W-24/68	HY5W-27/76.5	HY5W-30/85	HY5W-33/93.5	HY5W-36/102
1	Rated Voltage	kV	21	24	27	30	33	36
2	Continuous operating voltage	kV	16.8	19.2	21.6	24	26.4	28.8
3	Nominal discharge current	kA	5	5	5	5	5	5
4	Min. reference voltage at D.C. 1mA	kV	30.1	34.4	38.7	43	47.3	51.6
5	Lightning impulse residual voltage 8/20 μs	kV	59.5	68	76.5	85	93.5	102
6	Steep current impulse residual voltage 1/10 μs	kV	68.4	78.2	88	98	108	117
7	Switching impulse residual voltage 30/60 μs	kV	50.5	57.8	65	72.2	79.5	86.7
8	2ms rectangular current withstand	A	75	75	75	75	75	75
9	4/10 μs high current impulse withstand	kA	65	65	65	65	65	65
10	Arrester number of sheds	PCS	7	8	9	9	10	10
11	Creepage distance	mm	688	783	878	878	973	973
12	Arrester height	mm	312±5	341±5	370±5	370±5	399±5	399±5
13	Body weight	Kg	1.62	1.94	2.10	2.12	2.43	2.45

Table 3 The technical parameters of 10kA seires polymer housed MOA for export

	Type designation	Unit	HY10W-3/8.5	HY10W-6/17	HY10W-9/25.5	HY10W-12/34	HY10W-15/42.5	HY10W-18/51
1	Rated Voltage	kV	3	6	9	12	15	18
2	Continuous operating voltage	kV	2.4	4.8	7.2	9.6	12	14.4
3	Nominal discharge current	kA	10	10	10	10	10	10
4	Min. reference voltage at D.C. 1mA	kV	4.3	8.6	13	17.2	21.5	25.8
5	Lightning impulse residual voltage 8/20 μs	kV	8.5	17	25.5	34	42.5	51
6	Steep current impulse residual voltage 1/10 μs	kV	9.8	19.6	29.3	39.1	48.9	58.7
7	Switching impulse residual voltage 30/60 μs	kV	7.2	14.4	21.7	28.9	36.0	43.3
8	2ms rectangular current withstand	A	350	350	350	350	350	350
9	4/10 μs high current impulse withstand	kA	100	100	100	100	100	100
10	Arrester number of sheds	PCS	1	2	3	4	5	6
11	Creepage distance	mm	118	213	308	403	498	593
12	Arrester height	mm	138±5	167±5	196±5	225±5	254±5	283±5
13	Body weight	Kg	0.80	1.10	1.40	1.50	1.79	2.15

Table 4 The technical parameters of 10kA seires polymer housed MOA for export

	Type designation	Unit	HY10W-21/59.5	HY10W-24/68	HY10W-27/76.5	HY10W-30/85	HY10W-33/93.5	HY10W-36/102
1	Rated Voltage	kV	21	24	27	30	33	36
2	Continuous operating voltage	kV	16.8	19.2	21.6	24	26.4	28.8
3	Nominal discharge current	kA	10	10	10	10	10	10
4	Min. reference voltage at D.C. 1mA	kV	30.1	34.4	38.7	43	47.3	51.6
5	Lightning impulse residual voltage 8/20 μs	kV	59.5	68	76.5	85	93.5	102
6	Steep current impulse residual voltage 1/10 μs	kV	68.4	78.2	88	98	108	117
7	Switching impulse residual voltage 30/60 μs	kV	50.5	57.8	65	72.2	79.5	86.7
8	2ms rectangular current withstand	A	350	350	350	350	350	350
9	4/10 μs high current impulse withstand	kA	100	100	100	100	100	100
10	Arrester number of sheds	PCS	7	8	9	10	11	12
11	Creepage distance	mm	688	783	878	973	1068	1163
12	Arrester height	mm	312±5	341±5	370±5	399±5	428±5	457±5
13	Body weight	Kg	2.45	2.74	2.76	3.34	3.45	3.47

Table 5 The technical parameters of 10kA seires polymer housed MOA for export

	Type designation	Unit	HY10W-42/119	HY10W-45/127.5	HY10W-60/170	Y10W-120/325
1	Rated Voltage	kV	42	45	60	120
2	Continuous operating voltage	kV	33.6	36	48	96
3	Nominal discharge current	kA	10	10	10	10
4	Min. reference voltage at D.C. 1mA	kV	60.2	64.5	86	175
5	Lightning impulse residual voltage 8/20 μs	kV	119	127.5	170	325
6	Steep current impulse residual voltage 1/10 μs	kV	136.8	146.5	195.5	356
7	Switching impulse residual voltage 30/60 μs	kV	101.2	108.5	144.5	267
8	2ms rectangular current withstand	A	350	350	350	600
9	4/10 μs high current impulse withstand	kA	100	100	100	100
10	Arrester number of sheds	PCS	13	14	15	23
11	Creepage distance	mm	1258	1353	1448	4060
12	Arrester height	mm	486±5	515±5	544±5	1734
13	Body weight	Kg	4.36	4.50	5.66	182
